Chain Blocks HSZ-K

Place of Origin: CHINA
Brand Name: SEAGULL
Certification: GS/CE
Model Number: HSZ-K
Payment & Shipping Terms: Minimum Order Quantity: 1 PCS
Price: Negotiation
Packaging Details: Packed in carton firstly,and then reinforced with steel case for outer packing
Delivery Time: 30 working days after received your payment
Supply Ability: 150000 pcs per year

Product Introduction

Product Summary

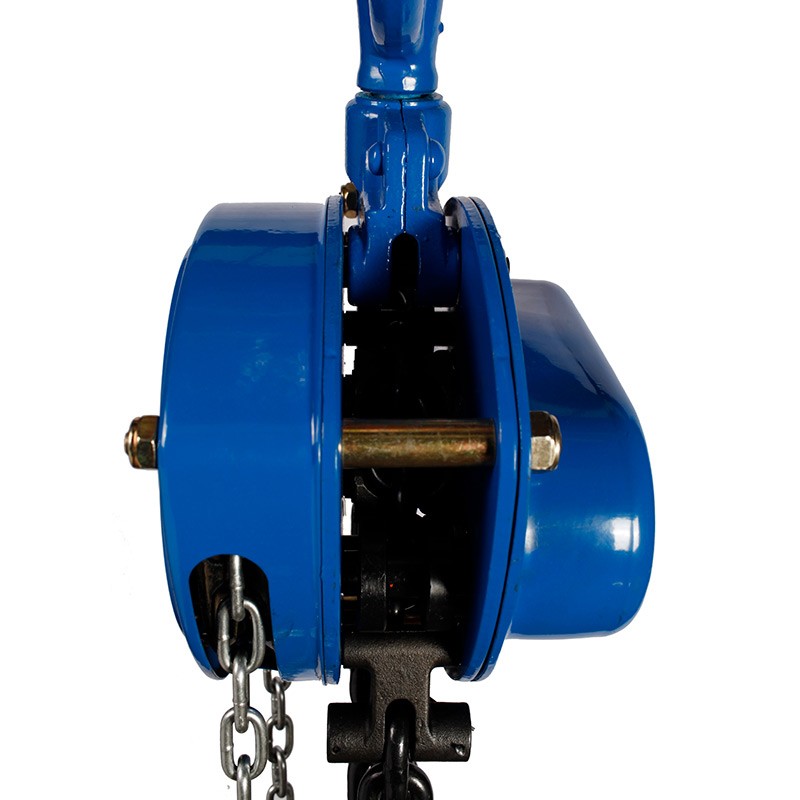

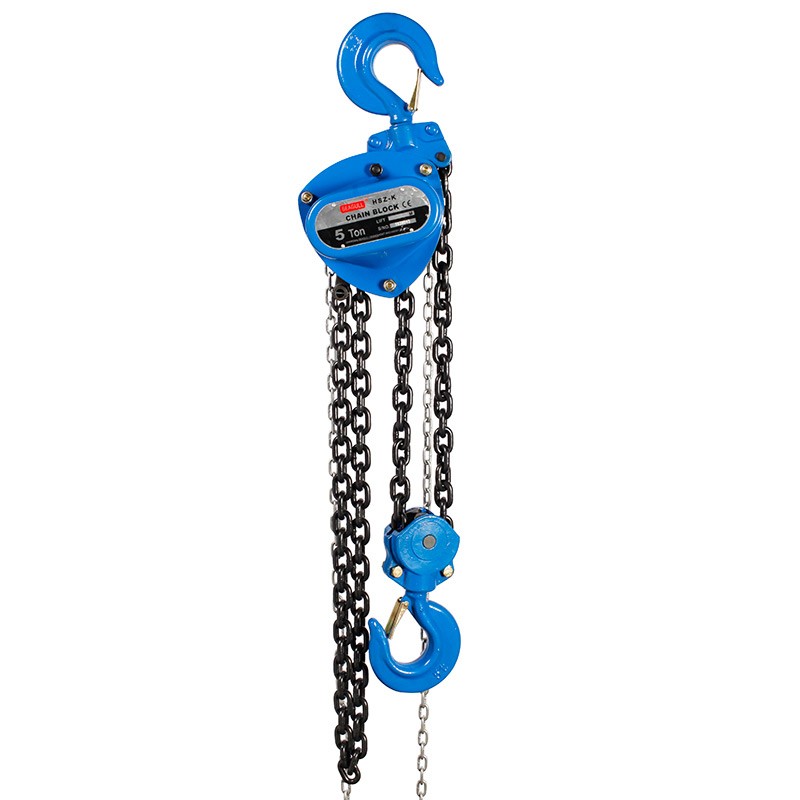

SEAGULL manual chain hoist features steel-casting housing, Grade 80 chain and a compact design that's perfect for tight spaces. Black finish lift chain is rust resistant and durable, while zinc-plated pull chain resists rust. All-steel construction for durability and wear resistance.

Product Description

Capacity from 0.25T to 50T

Have certificate of CE

Got certificate of ISO9001

Automatic double-pawl braking system

More thickness of sheet cover,gear cover and side plates for good quality.

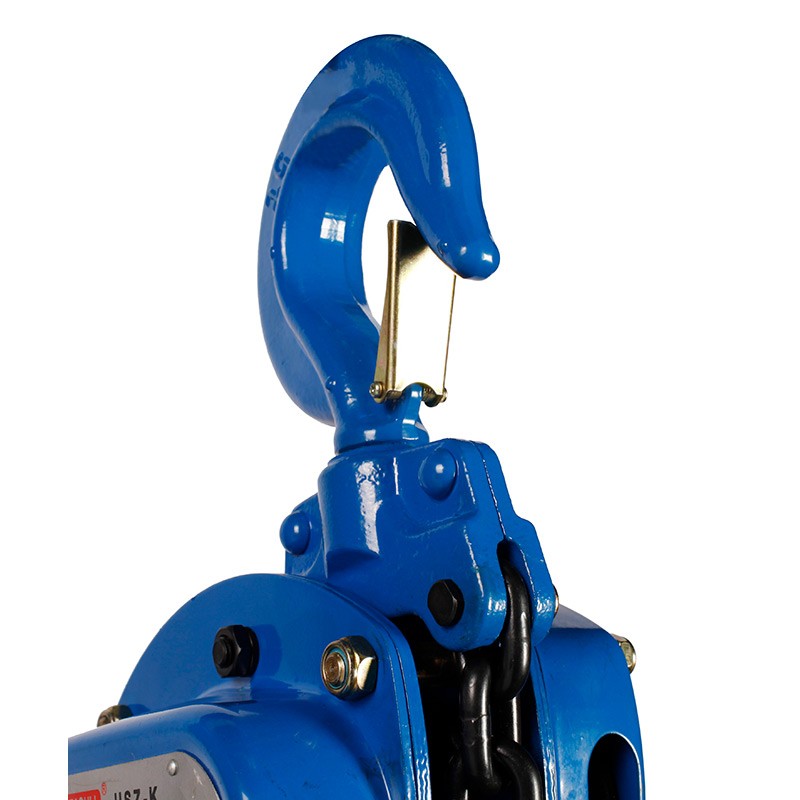

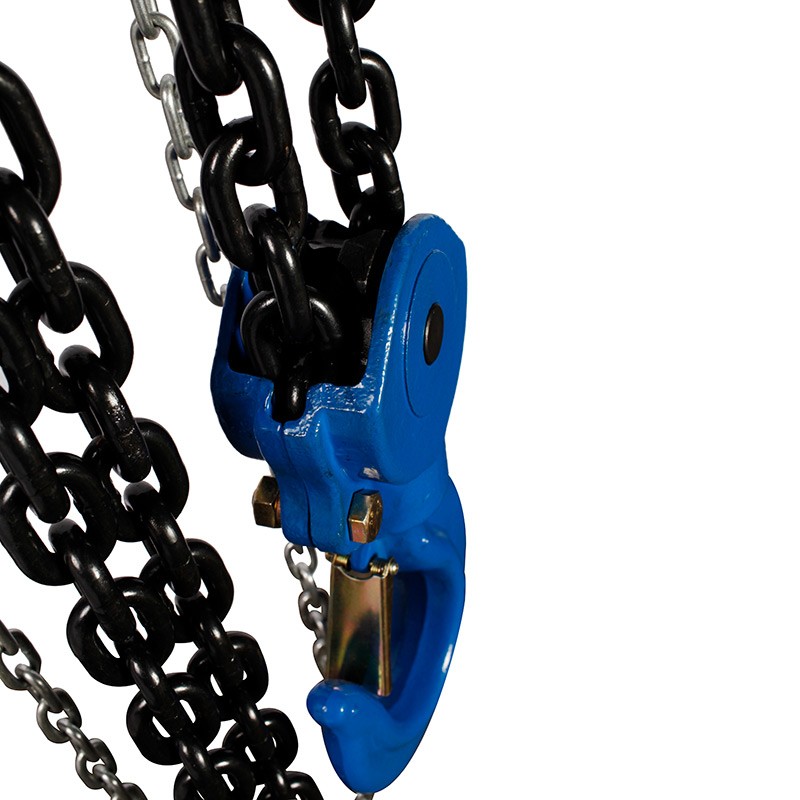

Drop forged hooks and hook holders to ensure superior quallity and safety.

Asbests-free brake discs

The static test is 4 times of capacity,and running test is 1.5 times of capacity one by one.

Technical Parameters

Model HSZ-0.5K HSZ-1K HSZ-1.5K HSZ-2K HSZ-3K HSZ-5K HSZ-10K HSZ-20K HSZ-30K
Rated load (T) 0.5 1 1.5 2 3 5 10 20 30
Standard lift (m) 2.5 2.5 2.5 2.5 3 3 3 3 3
Test load (T) 0.75 1.5 2.25 3 4.5 7.5 12.5 25 37.5
Efforts required at capacity (N) 262 324 395 330 402 430 438 438 442
Diameter of load chain (mm) 5 6 7.1 6 7.1 10 10 10 10
No. of load chains 1 1 1 2 2 2 4 8 10
Dimensions (mm) A 120 147 181 158 202 228 373 638 703
B 116 136 147 136 148 178 178 195 397
C 285 332 410 470 550 640 737 1022 1050
D 28 32 38 40 44 50 64 82 82
Net weight (kg) 7 10 15 23 23 38 68 160 235
Extra weight per meter of extra lift (kg) 1.5 1.8 2 3.2 3.2 5.3 9.8 19.6 23.9
