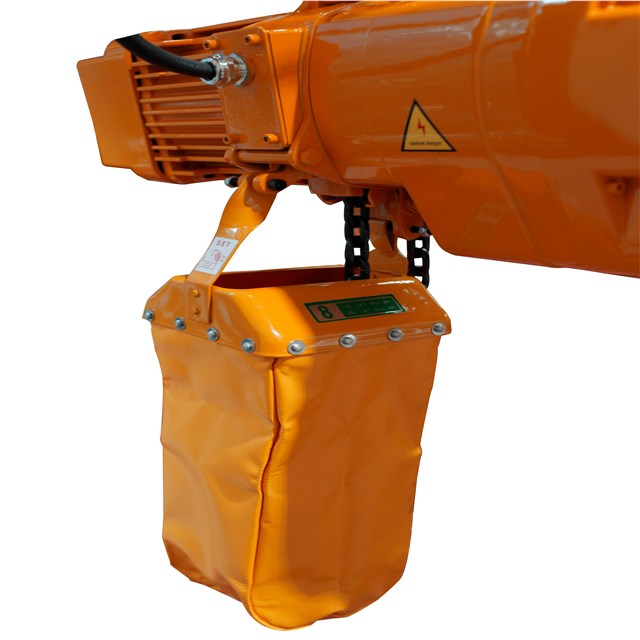

Product Description
PRODUCT DESCRIPTION
Capacity:0.5t,1t,2t,3t,5t,7,5t,10t,15t,25t,30t,35t.
Motor:Work class F insulation.
Duty rating:45%.Aluminum alloy motor with light weight and good heat dissipation to allow up 30minof continuous duty work at least.
Gear:All the gearing process by CNC Digital lathe with heat treating
Shelly:Made of light aluminum alloy shell.Light&hard. The cooling fin is especially designed to ensure quick heat dissipationwith the rate up to 45% and continuous service. The integral enclosed structure is applicable to places like chemical plate andelectroplate factroy
Side magnetic braking device:The magnetic orce generator is the lastest design which is featured for generating magnetic force. It allowsinstant brake cut off electric power asap.Keep the braking safety while loading is guaranteed
Limit switch :The limit switch automatically stop the hoist overlifting or overlowering
Chain:FEC JAPAN made G-80 super alloy steel chain.Heat treated to used in harsh environments .

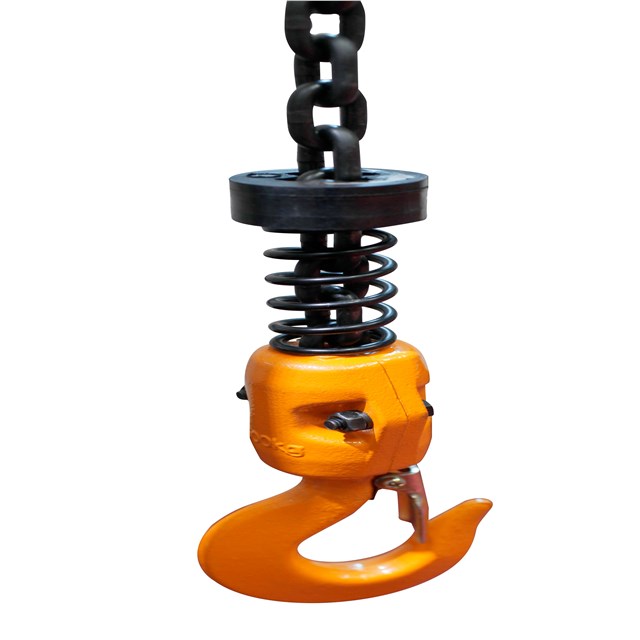

Hook:Hot fored with perfect strength and tough with saftey latch on the top&bottom hook. Bottom hook swivels through 360°
Support frame:The loading support frame consists of two steel plates which is extremely sturdy
Transformer:24/36V transformer device forbid unexpected accidents such as electric leakage.
Electromagnetic contactor:It can use safely under high frequency
PackingIt wonn't work when error wiring connecting by the end user to keep safe

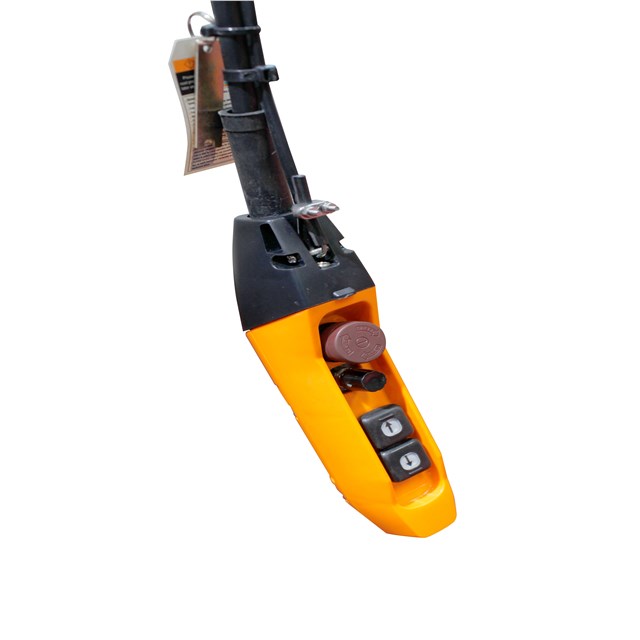

Control button:IP 54 protection on electric hoist for dust and water proof protection.36V control

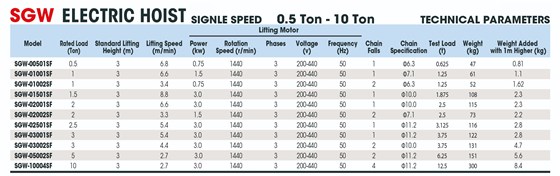

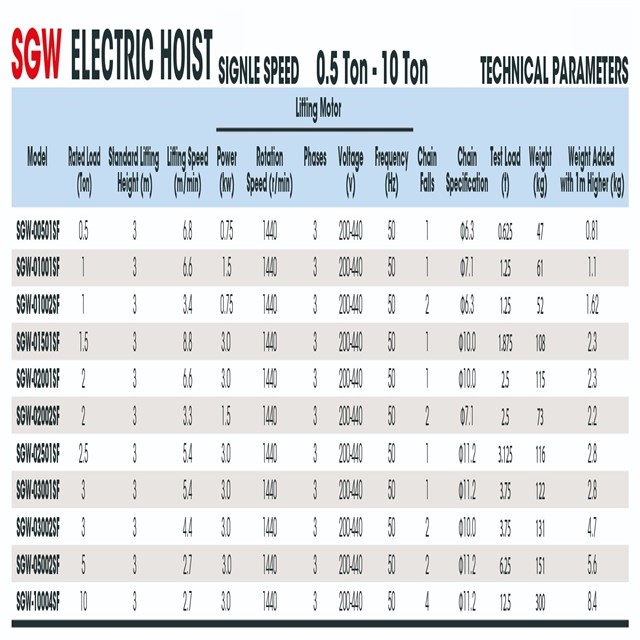

Technical Parameters
Our Team
Questions
-
1 Why choose us?
Seagull has more than 30 years experience on this lifting equipments field. All our sales work in seagull more than 10 years and know our products very well. We will feedback your email within 8 hours. We control the defect of lifting equipments under 0.01% over 15 years . This means, we has the ability to preview problems. Therefore, We will avoid any risk happen if you make a wise choose on seagull.
-
2 How about sample policy?
We accept sample order. Please inform your detailed sample requirement, such as the model, the capacity, the lifting height and so on. If we have the sample in stock , the ship will be quicker. If we don’t have the stock, we will make the sample as soon as possible. Please be patient and wait for a period of time. The sample fee and express fee usually paid by client, for special policy need to apply by client and approved by our leaders.
-
3 How to make an order?
Please send us your purchase order by Email or Fax,
1) Product information: Quantity, Specification (capacity, lifting height, voltage, size, material, color and packing requirement),
2) Delivery time required.
3) Customer information: Company name, Address, Phone number, Destination seaport/airport.
4) Ship by FOB or CIF or CNF.
-
4 Which payment way is available?
30% T/T at advance, 70% T/T by copy of B/L.
100% L/C at sight(long cooperation ).
-
5 What import customers you are cooperation?
CM,MSC USA ,JET Canada,TRACTEL France, BEAVER Austrialia,HFS Austria,HHH Japan,etc.
Our Strengh
-
-
PRODUCTION LINE
We always insisted that “Quality ,development,credibility,sincerity,cooperation and the principles of seagull".
We provide the better and more inexpensive product. Welcome the customers from all over the world!
-
-
OEM/ODM
Our company has our own unique team of designers, for different types from OEM $ ODM customer's needs! With more than 20 elites in RD dept, we provide OEM/ODM project for many countries, such as German, Japan, Canada, Mexico, Hongkong, etc.
-
-
R&D
Our company has set up the R&D machinery department. In 2000, the company and Japan HHH joint venture, with the japanese technology, produced the first hand chain hoist.
-
-
QC PROFILE
We have a special Q&C department, which will conduct quality test before shipment.
